高速訊號測試過程中,準確、穩定的測試治具是確保測試結果精確的重要關鍵。
範例分享
● U.2 CBB+CLB
- Signal Integrity Board for U.2(SFF-8693) Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), U.2 CBB and CLB for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI- SIG CEM ISI board.
● U.3 CBB+CLB
- Signal Integrity Board for U.3(SFF-TA- 1001) Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), U.3 CBB and CLB for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI- SIG CEM ISI board.

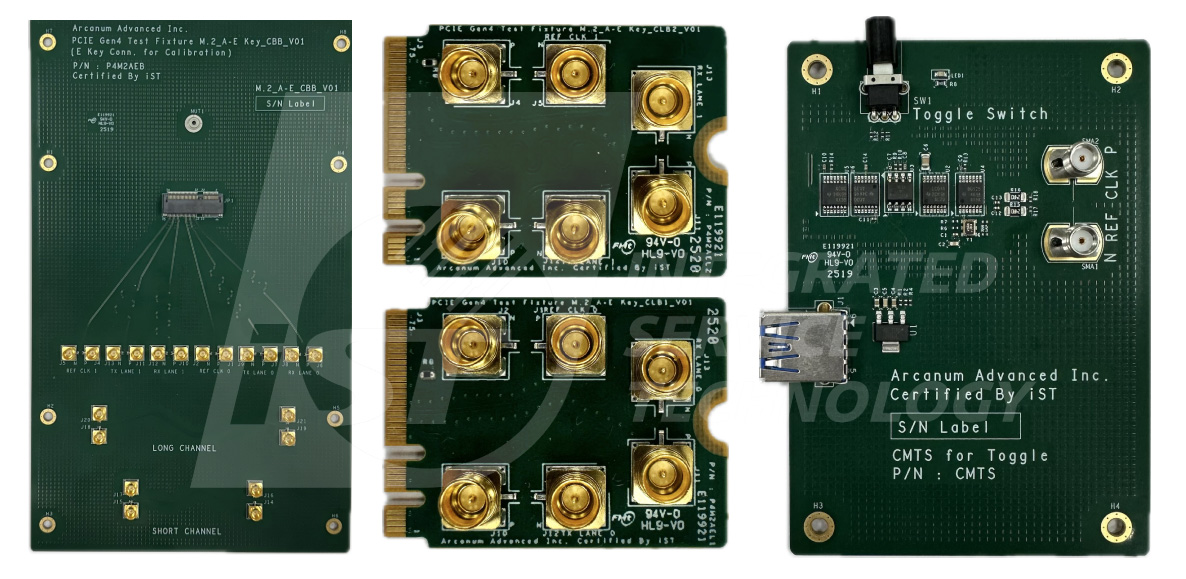

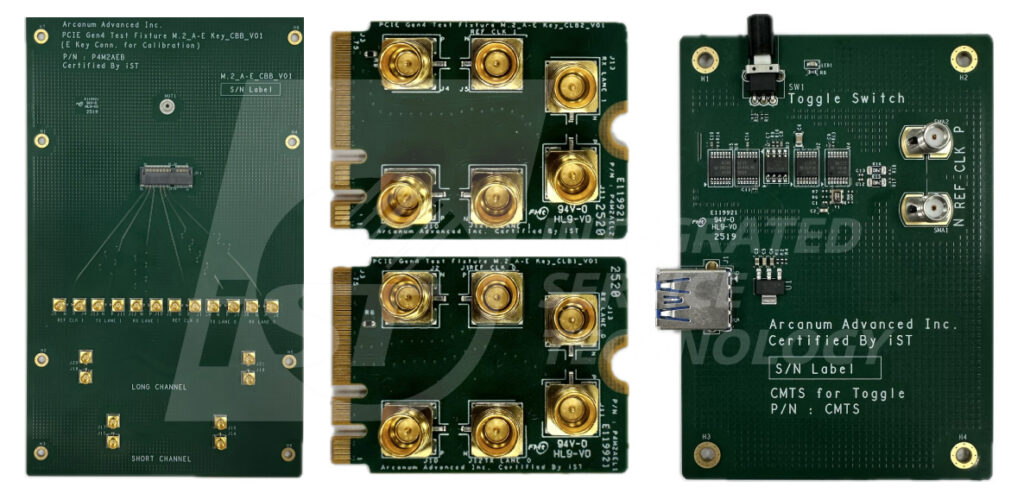

● M.2 CBB+CLB1+CLB2
- Signal Integrity Board for M.2 Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), M.2 CBB and CLB1 CLB2 for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI- SIG CEM ISI board

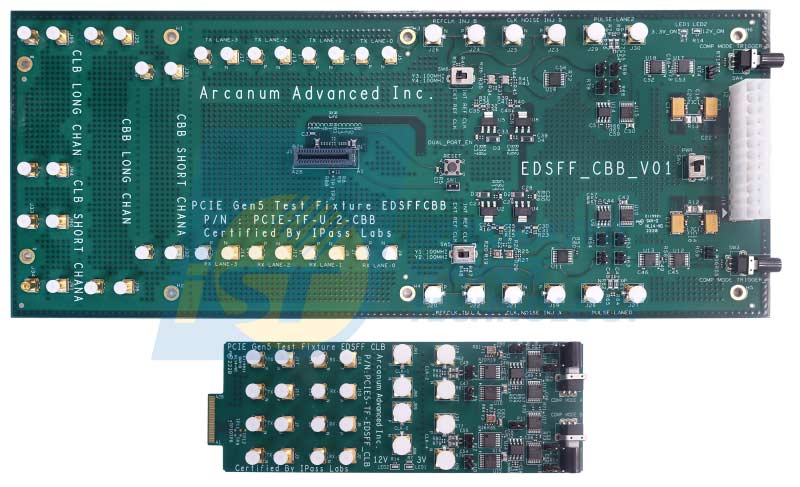

● EDSFF E1.S/E1.L CBB+CLB
- Signal Integrity Board for EDSFF(SFF-TA-1006, SFF-TA-1007) Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), EDSFF CBB and CLB for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI- SIG CEM ISI board

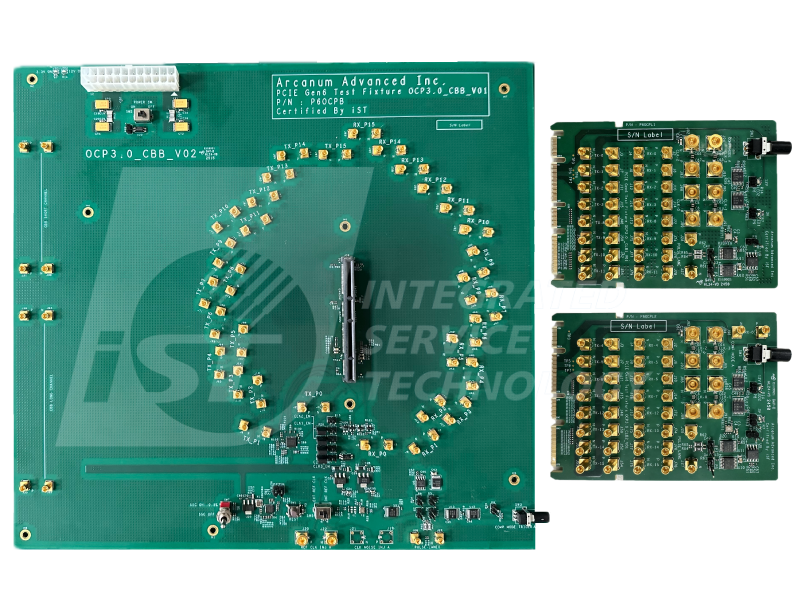

● OCP 3.0 CBB+CLB1+CLB2
- Signal Integrity Board for OCP Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), OCP CBB and CLB1 CLB2 for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI- SIG CEM ISI board
● Key Feature
For 56 GBaud Channel Emulation
- Use of 1.85 mm connector
- Design for 56 GBaud and 28 GBaud
- 28 differential channels
28 Multi-Pairs
- Loss Range - 4.8 dB to 31.3 dB in 28 pairs @ 26.56 GHz
- Pair length - 3.6 inch to 25.8 inch
28 GBaud Compatible
- Loss Range - 2.3 dB to 16.5 dB in 28 pairs @ 13.28 GHz
- Pair length - 3.6 inch to 25.8 inch
