The low voltage surge test is designed to test resistance against electromagnetic interference. It tests electronic components, electronic circuit boards, and electronic equipment among other electronic system products to verify their resistance against electromagnetic interference.
What iST can do for you?
iST may provide both module and components or spot test with a probe station and verify with a parameter analyzer. Available waveform outputs may contain the following:
- 1.2 / 50 us (8 / 20 us)
- Compliance with IEC 61000-4-5 standard
- Open voltage waveform : 1.2 / 50 us
- Short circuit current waveform : 8 / 20 us (output impedance : 2 Ω)
- 5 / 50 us
- 10/ 100 us
- 10 / 200 us

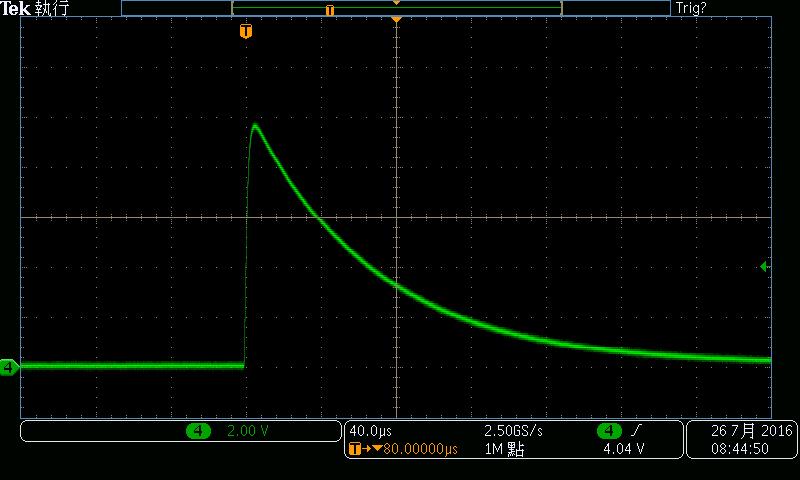

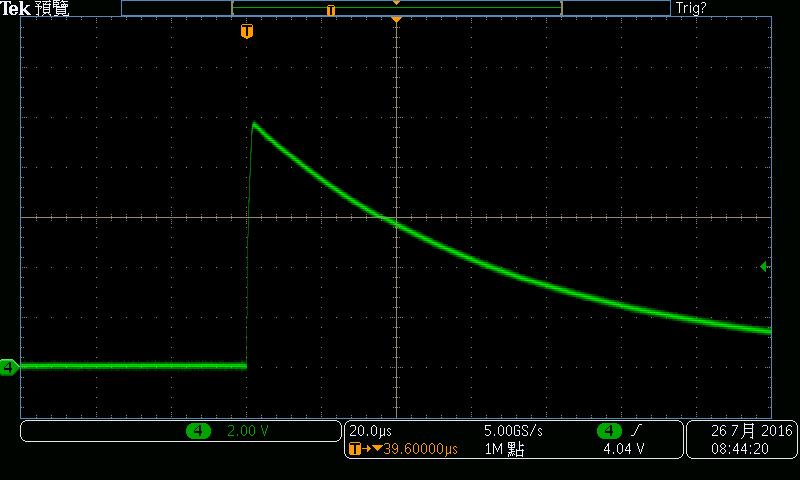

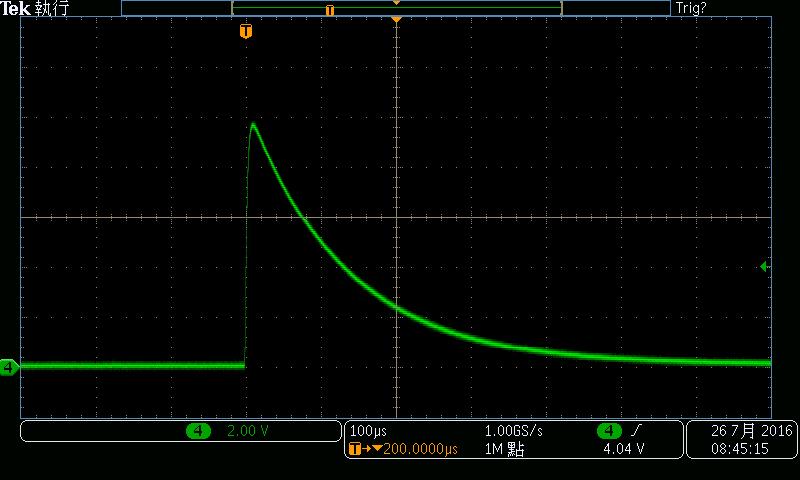

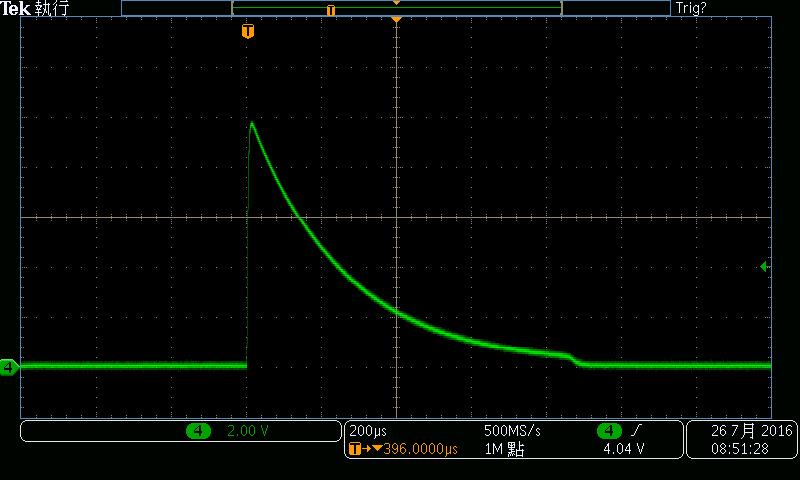

1.2/50 us
10/100 us
5/50 us
10/200 us
The Superiority of iST
- Ample support, with sockets of multi-packaging types for test.
- Able to run probe test together with a probe station
Equipment Limits
- Voltage output:-200V~+200V
