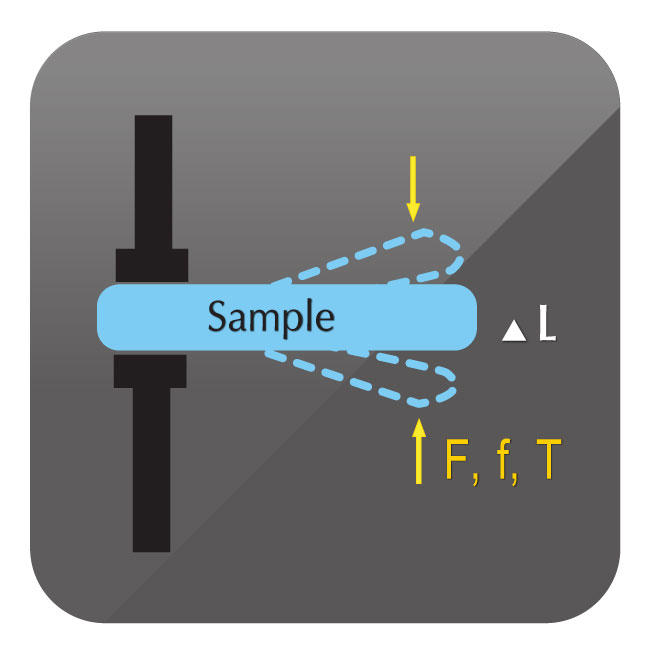

By applying different factors, including temperature, force, frequency, and deformation, the Dynamic Mechanical Analyzer (DMA) can give us the information of materials such as strength, viscosity, elasticity, and various phase transition. Then we can achieve useful characteristic factors like Tan delta, storage modulus (E’), loss modulus (E”), Young’s modulus (E), and shear modulus (G).
What iST can do for you?
Combining different parameters to observe mechanical characteristics of material:
- Frequency Scan
- Temperature/Time Scan
- Stress Relaxation
- Stress-Strain
- Creep
Obtain key material characteristics by different analysis models:
- Storage Modulus, E’
- Loss Modulus, E”
- Tan Delta
- Young’s Modulus
- Transition Temperature
Case Sharing
TA Q800
- Maximum temperature range: -150℃~600℃
- Force range: 0.1mN~18N
- Force resolution: 0.01mN
- Deformation resolution: 1nm
- Modulus range: 103~3x1012
- Damping sensitivity: 0.0001
- Damping resolution: 0.00001
- Frequency range: 0.01~200Hz
- Dynamic sample deformation range: ±0.5~10000 μm
- PCB industry
- Photoelectric industry
- Metal and plastic processing industry
- Semiconductor industry
- Material R&D
