by ruby

Issued Date: 2018/5/8
Issued By: iST

Do you remember one of the most popular TV shows in the ‘80s, Knight Rider? Do you remember his partner, KITT, the humanized car with cutting edge technology and immense might, able to resist almost anything?

At that time, most viewers saw KITT as something that could only be imagined by sci-fi geeks. Thanks to soaring technological development, many of its fantastic qualities are now available in models marketed by Tesla, M-Benz, BMW, Toyota, etc., including auto driving, braking and parking, as well as collision warning. Electronic components facilitating these functions are subject to a series of stringent reliability tests, designed to ensure their faultlessness and damage free operation, before they can be adopted to ensure the best protection of rider safety.

The automotive industry has been well known for being closed to outsiders. Leading car manufacturers do not focus on “cost down” in their production as the lives and health of riders are much more important. Poor product design and/or reliability may result in large sums in compensation lawsuits. This makes them reluctant to change suppliers. This is not the case with the rocketing demands for “AI electric vehicles” and “ADAS (Advanced Driver Assistance Systems),” as costs of automotive electronics now account for 40-50% of total car prices. These two new factors are pressing car makers to source electronic product supply chains out of their traditional comfort zone. In 2017, 60% of global automobile sales were made by the top 7 car manufacturers. That is, the industry is very concentrated, and every maker of electronic products has to manage to fend off competitors in the global automotive supply chain.

Featuring short product life cycles, the consumer electronics industry has been living with generation changes every 3-5 years. This mandates capacity and strength of “time to market,” enabling scores of startups to debut into the mainstream rapidly. This is not so in the automotive industry. New technologies are seldom adopted by hot-selling models. Instead, the latter would most likely feature the most mature and reliable goods. The author of this article suggests that startups fighting for survival aim at aftermarkets (AM) or raise product reliability if they are targeting brand owners/Tier 1.

This article shall explore ways to improve product reliability in terms of requirement specifications and validation results/V curves (see figure 1) emphasized by both SAE J1211 and ISO 26262. The goal is to help those seeking to enter the AI automotive supply chain to learn about the essentials of car electronic component design and verification using my practical experience serving at iST and DEKRA iST.

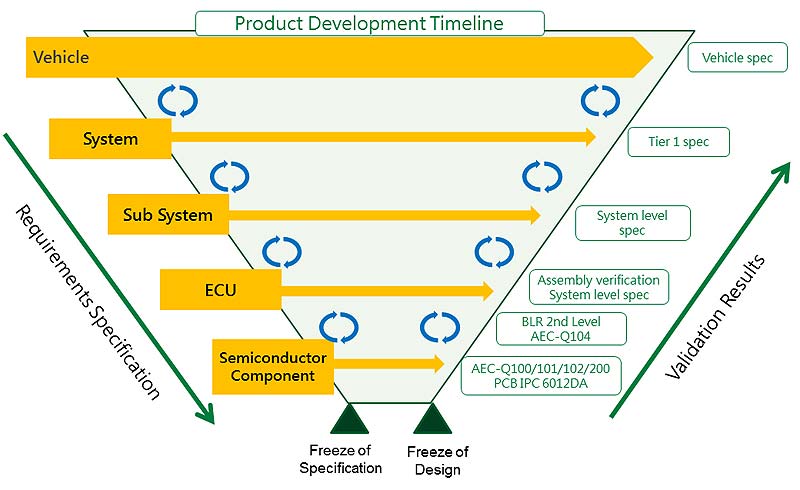

Figure 1: V-curve, car component design and verification process (source: SAE J1211)

5 steps in internationally reliable automotive quality grade validation

To develop a product and function, the automotive manufacturer defines System function -> Sub system function -> Electronic control unit (ECU) to employ -> Semiconductor components to use from left to right and top-down, as shown in figure 1, while validating requirements compliance happens in reverse order. That is, assuring quality from the very beginning is the only way to make highly reliable products, as “unstable foundations lead to collapse.” Without observing the V-curve there is no way to ascertain the causes of product failure: poor quality of the product at the previous level, a process issue, or poor design by you yourself?

  • Step 1:Component level – active components AEC-Q100 compliant, LED AEC-Q102 compliant (2017 edition), passive components AEC-Q200 compliant
  • Step 2:PCB level – printed circuit board (PCB) IPC-6012DA compliant
  • Step 3:Board level – board level reliability (BLR) of solder points after mounting on PCB
  • Step 4:Board level – PCBA process quality verification and validation
  • Step 5:System level – standard specification from system module to Tier 1 / brand owners
  • (I) Step 1: Component level: AEC-Q Series

    Addressing reliability verification over automotive ICs, the top 3 American vehicle manufacturers, Chrysler, Ford and GM, established the Automotive Electronics Council (AEC) in 1994 to set up quality control standards for automotive components. As AEC standard compliant electronics could also be adopted by Chrysler, Ford and GM at the same time, components makers were encouraged to exchange product feature data. This, in turn, ramped up the implementation of common automotive components and facilitated the fast growth of vehicle components.

    Leading automotive makers around the world are setting AEC-Q100 as the mandatory requirement of active components for safety relevant ECUs amid climbing interest in AEC-Q200. This author suggests domestic manufacturers take steps in dealing with the latter as it may become mandatory in the future. AEC-Q102, the LED AEC component specification in 2017, is now the bible of automotive LEDs.

  • (II) Step 2: PCB level - IPC-6012DA compliant

    PCBs bridge active and passive components. You may rework failed components but not replace any PCB after all its components are removed. A PCB is, in essence, the key electronic automotive component.

    Automotive PCBs are most likely validated according to IPC-6012 rather than any exclusive validation method. The IPC-6012DA, the first automotive specific PCB validation and acceptance specification by IPC in 2016, is the first step by IPC to regulate PCB makers competing in this fast growing market. It includes Thermal shock endurance testing, High temperature endurance testing, Humidity storage testing, Conductive anodic filament testing (CAF testing), Surface insulation resistance testing (SIR testing) and so on. This standard is now an important reference for brand owners and Tier 1 in PCB reliability verification.

  • (III) * Focus of this article: Step 3: Board level – automotive component solder joint reliability after being mounted (Board Level Reliability, BLR)

    The Board Level Reliability (BLR) is the most common global method to verify IC component solder joint reliability after being mounted on PCB. It has been a routine test item for hand-held devices; however, as more IC components are used in cars which increase the complexity of the automotive electronic system, the BLR has gradually become one of the important test items of automotive electronics.

    Tier 1 module makers are making rising efforts in creating proprietary board level tests, including Bosch, Continental, and TRW, among others. More strikingly, the AEC has also come up with the latest AEC-Q104 qualification to clearly define the test items of BLR recently. Although the AEC-Q104 covers only Temperature Cycle Test (TCT), Drop Test, Low Temperature Storage Life (LTSL) and Start-up & Temperature Steps (STEP), etc, and has not been completely close to the specification of Tier 1 makers; AEC-Q104 is treated as a big step in the BLR general standard. See following table for the testing conditions of Board level required by Tier 1 module makers.

    Test ItemA CompanyB CompanyC Company
    RTC
    TMCL
    ◆ -40~125℃ @ 2,000~4,000 cyc.
    ◆ 30 mins. dwell time
    ◆ Dual chamber(Air to Air)
    ◆ -40~125℃, @ min 2,000 cyc
    ◆ 10 mins. dwell time.
    ◆ 10 ≤ ∆T/∆t ≤ 20 K/min.
    ◆ -40~125℃ / -40~150℃ @ 3,000 cyc.
    ◆ 10 mins. dwell time.
    ◆ 30 mins transfer time
    PTC◆ -40~105℃ @ 2,600 cyc.
    ◆ T on/off = 5mins. 10mins./cyc.
    NANA
    Vibration◆ 100Hz~2,000Hz @ 5.02 PSD
    ◆ RMS acceleration : 97.7m/s2.
    ◆ Random Vibration + Temp.
    ◆ 20Hz~2,000Hz @ 0.1 PSD,
    ◆ RMS acceleration :189.4~818m/s2.
    ◆ Sine sweep or random VIB.
    NA
    DropNA◆ Direction C+/C-
    ◆ 1,000G @ 1.4ms
    ◆ Direction C-
    ◆ 1500G, 0.5ms, 60 drop
    Bending◆ Deflection d=1,0mm, 20sec
    ◆ Bend to fail
    NA◆ Displacement d=2.0mm, 100cyc.
    ◆ Displacement d=4.0mm, 100cyc.

    Table 1: The testing conditions of Board level required by Tier 1 module makers

    1. The top five solder joint failure types suffered by board level automotive chips found in iST and DEKRA iST labs:

    (1) Solder joint size and layout
    (2) Solder joint alloy ingredients
    (3) PCB design mechanism and material selection
    (4) Reflow temperature and flux residual
    (5) Underfill material surrounding solder joint (see figure 2)

    The aforementioned failures (2), (3), and (5) may be influenced by thermal expansion coefficients, which, in turn, may lead to different deformation levels as automotive chips are most likely operating in very high temperatures. In addition to the aforementioned vibration stress, the repetitive contraction and expansion due to changing temperatures may pull and press solder joints and break them. Selecting chip materials with closer thermal expansion coefficients can reduce temperature-related stress greatly. Most consumer goods like computers and cellphones enjoy warranty periods of around 2-5 years while the life cycles of automotive chips may last 10-20 years. This requires carefully designed test conditions and early adoption of these factors in initial chip development. Far more stringent safety and reliability requirements in the automotive industry over computer and mobile phone products not only extend the service life of chips but also improve remedy schedules and costs after failure analysis.

    Figure 2: Top five solder joint failure types suffered by board level automotive chips

    2.Do BLR test conditions of consumer electronics remain applicable to automotive electronics?
    This is one of questions most frequently asked by our customers, and the answer is “No”. These conditions no longer apply as the operation environment and structure of car borne platform differs. Chips employed in-vehicle are constantly subject to vibration, mechanic stress and poor external conditions especially when cars are running. A product’s qualified consumer electronics requirements may fail early in practical operation environment.

    Take the vibration test; handheld products are most likely subject to simulated ordinary land, sea, and air shipment conditions while the vehicle ones shall pay more attention to temperature and humidity durability and resistance against temperature and vibration due to long time exposure to external environment. Environment at Frigid Zone and Tropical Zone differs; temperature of confined space under direct sunlight may hit 100°C or even 150°C measured close to engine. To better mimic the real operation environment the factor of vibration is added in the test environment. That is, the combined vibration test known to us. Besides vibration and temperature test, the solder joints should subject to such as push, pull and cyclic bending test to ensure the strength of it is safe to the rider.

  • (IV) * Focus of this article Step 4: Board level – PCBA process quality verification and validation

    The RoHS implemented by the EU in July 2006 requires that the Pb content in electronic products shall be less than 1000ppm. Replacing the tin-lead solder process for electronic products, in use for more than half a decade, with a Pb-free process mandates a whole new review and validation process for equipment, test methods, product quality and reliability, among others. The melting point of Pb-free material rose to 217℃ from the 183℃ melting point of tin-lead material, which, in turn, results in hardening, and brittle solder joints with poor fatigue resistance. Process yield becomes very hard to improve as a result of tin whiskers caused by solder joint flaws. This hampers its adoption in the medical, defense, and automotive industries when compared with its adoption in the consumer electronics industry due to the extremely high demands on reliability.

    The AEC-Q100 Version G released in 2007 came without Pb-free validation requirements. It was addressed in the Q005 (PB-FREE TEST REQUIREMENTS) written by the AEC in 2009, and version H of AEC-Q100 in 2014 finally had Pb-free validation tests, including Solderability, Solder heat resistance, and Whisker. The automotive industry eventually marched into the era of environmental protection.

    Thanks to lessons learned in implementing a Pb-free process for consumer electronics products, manufacturers are better equipped in managing the challenges of Pb-free and adapting it into the automotive phase. See figure 3 for a Pb-free validation flowchart. (courtesy of DEKRA iST Lab)

    Figure 3: Pb-free validation flowchart (source: DEKRA iST Lab

    Furthering the Pb-free process for on-board information systems, the iST and DEKRA iST Lab where this author is now working has been consigned the validation of ABS and SRS safety function-critical ECU by international Tier 1 brand owners. This without a doubt marks that the automotive industry, which mandates the highest level of reliability, is adding the Pb-free process into its core personal safety electronic components.

    The experiences of the iST and DEKRA iST Lab in working by Tier 1 tells that different areas may impose different requirements:

    1. Western automotive makers and Tier 1 owners pay more attention to product service life, set up test programs in terms of product life cycle, and accelerated tests including Arrhenius Model for thermal aging, Hallberg-Peck Model for high temperature and humidity and Coffin-Manson Model for temperature cycling.
    2. American manufacturers especially demand High Accelerated Life Testing (HALT) and aim to identify design flaws with Test to Failure. The goal is to improve design flaws at the design validation phase as shown in figure 4.
    3. Asian countries (Japan and South Korea) require ion migration and whisker validation. My educated guess suggests most of these electrochemical validations in Asia are made by long hours rather than accelerated testing. Products of Asian and Tier 1 makers subject to these tests may lend the impression that the actual products will have a longer automotive electronic product life cycle compared to those by western brands who put more effort into environment protection.

    Figure 4: American automotive makers’ HALT tests

  • (V)Step 5: System level – standard specification from system module to Tier 1 / brand owners

    System module validation requirements may come at three stages:

    1. Rivalry: the company is faced with a live-or-die challenge and the immediate and only goal is to survive by launching products on the fastest timeline and at the lowest costs. There is nothing left to say about responsibility and quality.
    2. Alternative brand: the company is well established and is aiming to build up brand value. Quality verification is most likely subject to global automotive specifications, which almost always comes to the most widely adopted in the industry, ISO 16750 (Traditional Chinese edition CNS 15481, Simplified Chinese edition GB/T 28046 and Japanese edition JASO D014). There are four validations covered by it: electrical load, mechanical load, climate load, and chemical solvent load.
    3. Components for brand owner: there are no other options except being certified by the specification of the car maker or of Tier 1

My practical experience with the automotive supply chain at the iST and DEKRA iST Lab tells us that to sustain in the automotive industry, makers of consumer electronics products shall drop their long success history and devotion to quality and reliability without any compromise due to price factors. Automotive makers may demand a product adoption time span of up to 3-5 years of validation and an even longer period, 20 years, of after sale maintenance inventory. Owners have to have more patience and determination before stepping into the automotive industry. For more details, please contact iST Mr Daniel Chuang at +886-3-579-9909 Ext. 6403 or email him at TID@istgroup.com │DEKRA iST Mr. Wangchu Chen at+886-3-579-5766 Ext.7201 or email him at web_SRE@dekra-ist.com

Author:

Daniel Chuang, manager of BLR, iST
Wangchu Chen, senior technical manager of Tech-Marketing Office, DEKRA iST
